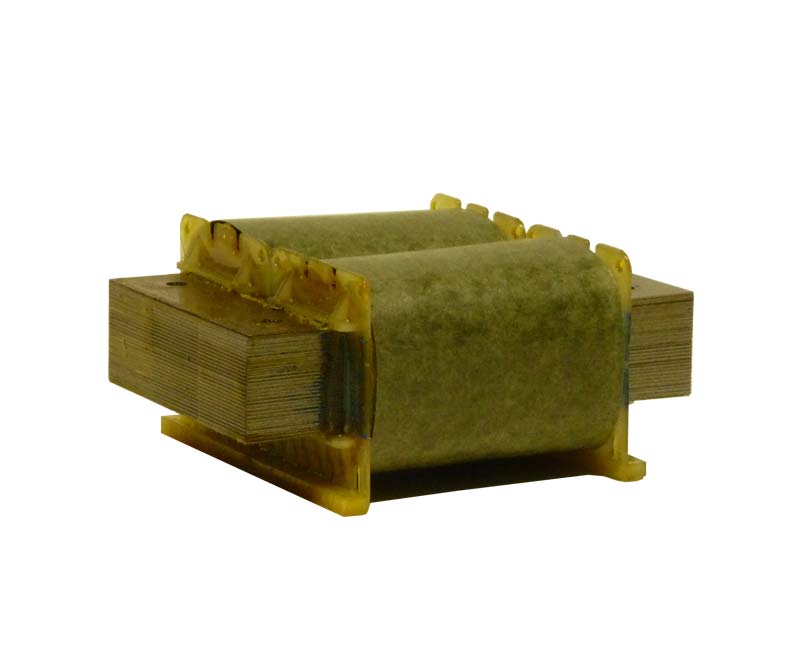

Single-phase Transformers for Printed Circuit and Low Profile
All our transformers are made to order, with tensions, primary and secondary numbers, connections, dimensions, implementations and options made at the customer's request.- Single-phase isolation transformers in accordance with standard IEC/EN 61558-2-4
- Single-phase safety transformers in accordance with standard IEC/EN 61558-2-6
Technical Specifications
- Service: continuous
- Frequency: 50...60 Hz
- Ambient temperature: 40°C
- Thermal insulation class: B
- Magnetic core: low core loss
- Coating: covered in class H varnish
Some examples of possible uses
- Thermal protection
- Magnetic core with grain-oriented (G.O.) steel
- Connection with pins, free wires, fastons
- Fixing with jumpers, spacers
- Container for embedding in epoxy resin
CEI EN 61558-2-4
CEI EN 61558-2-6
